A timekeeping device capable of being produced through additive manufacturing processes is considered a product of digital fabrication. These items often comprise multiple components designed in computer-aided design (CAD) software and subsequently materialized using a 3D printer. An example would be a device with intricate gears and a housing all created from materials like PLA or ABS plastic.
The significance of creating timekeeping instruments via this method lies in the customization and accessibility it offers. Individuals can tailor the design, size, and materials to their specific preferences or functional needs. Historically, clockmaking was a specialized craft requiring precision tools and expertise; this technology democratizes the process, enabling a wider audience to engage with horology and design. Benefits extend to rapid prototyping, iterative design improvements, and the potential for unique artistic expression.
The following sections will explore various design considerations, material choices, functional mechanisms, and available resources for individuals interested in pursuing the creation of their own timekeeping devices using this technology.
Frequently Asked Questions
This section addresses common inquiries regarding the design, functionality, and practical considerations of creating timekeeping devices using additive manufacturing techniques.
Question 1: What level of technical expertise is required to design and fabricate a functional timekeeping device using 3D printing?
Basic proficiency in CAD software is recommended for designing components. Familiarity with 3D printing processes, including material selection and printer calibration, is also beneficial. Pre-designed models are available for individuals with limited design experience.
Question 2: Which materials are most suitable for printing the components of a timekeeping device?
PLA (polylactic acid) is a common choice due to its ease of printing and biodegradability. ABS (acrylonitrile butadiene styrene) offers greater durability and temperature resistance. Precision components may benefit from materials with low shrinkage and high dimensional stability.
Question 3: How accurate can a 3D printed timekeeping device be?
Accuracy is influenced by design precision, material properties, and the quality of the printing process. While not typically achieving the accuracy of commercially manufactured devices, careful design and calibration can yield acceptable results for hobbyist or educational applications.
Question 4: What are the primary challenges associated with creating functional gears and mechanisms for a 3D printed timekeeping device?
Achieving smooth operation and minimizing friction are key challenges. Post-processing techniques, such as sanding and lubrication, may be necessary to improve performance. Design considerations include appropriate gear ratios and tolerances.
Question 5: Are there readily available resources or online communities for individuals interested in learning more about this process?
Numerous online repositories offer downloadable designs and tutorials. Online forums and communities provide platforms for sharing knowledge, troubleshooting issues, and collaborating on projects.
Question 6: Is it possible to integrate electronic components, such as a quartz movement, into a 3D printed timekeeping device?

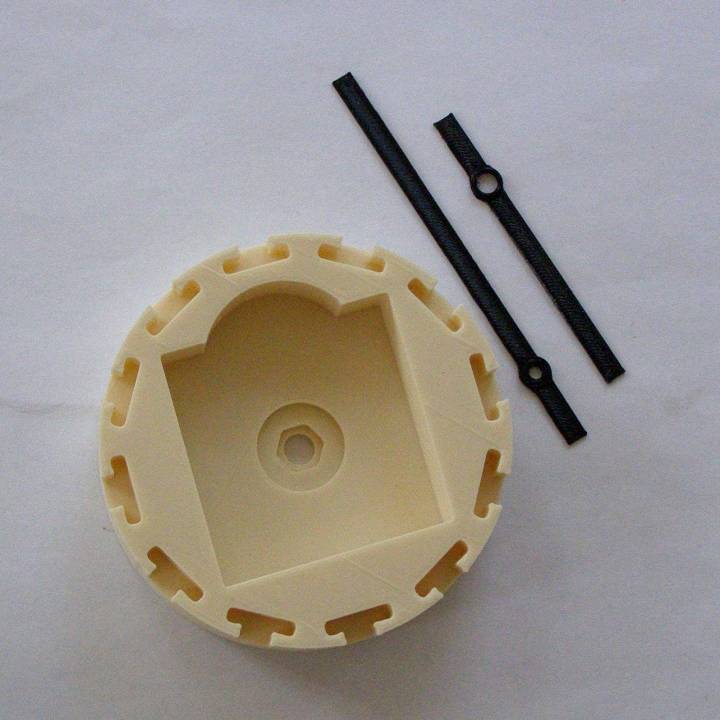

Yes, integrating electronic components is a common practice. The 3D printed structure can serve as a housing or decorative element for a commercially available quartz movement, providing a blend of custom design and reliable timekeeping.
In conclusion, while challenges exist, the creation of timekeeping devices through additive manufacturing presents opportunities for creative exploration and technical learning. The accessibility of designs and resources empowers individuals to engage in the art of horology with readily available technology.
The subsequent section will delve into specific design considerations for optimizing the performance and aesthetics of 3D printed timekeeping devices.
Design and Fabrication Tips
The following tips provide guidance for optimizing the design and fabrication process of timekeeping devices created through additive manufacturing. Adherence to these recommendations can enhance functionality and aesthetic appeal.
Tip 1: Optimize Gear Design for Minimal Friction: Implement involute gear profiles to ensure constant velocity ratios and reduce backlash. Apply appropriate pressure angles based on the intended load and speed. Consider using software tools to simulate gear meshing and identify potential interference issues.
Tip 2: Utilize Appropriate Layer Heights for Precision: Select smaller layer heights (e.g., 0.1 mm or less) for critical components such as gear teeth and bearing surfaces. This minimizes the stair-stepping effect and improves surface finish, leading to smoother operation.
Tip 3: Precisely Calibrate 3D Printer Settings: Thoroughly calibrate the 3D printer to ensure accurate dimensional reproduction. Pay close attention to extrusion rate, bed adhesion, and temperature settings. Perform test prints to verify dimensional accuracy and adjust settings as needed.
Tip 4: Select Filament Materials Based on Functionality: Choose filament materials with appropriate mechanical properties for each component. Consider using materials with low coefficients of friction for gears and wear-resistant materials for bearing surfaces. PETG offers a balance of strength and flexibility for many applications.
Tip 5: Incorporate Post-Processing Techniques for Enhanced Performance: Implement post-processing techniques such as sanding, polishing, and lubrication to improve the surface finish and reduce friction. Chemical smoothing can be used to further refine surface quality, but ensure material compatibility.
Tip 6: Implement Clearances and Tolerances Strategically: Account for manufacturing tolerances by incorporating clearances in the design. Parts which are meant to move in relation to each other must have enough space to do so freely without being too loose. The correct selection of these is very important.
Tip 7: Design with Modular Assembly in Mind: Design components that can be easily assembled and disassembled for maintenance or modification. Utilize features such as snap-fit connectors or threaded inserts to facilitate assembly and disassembly.
Adhering to these guidelines contributes significantly to the successful creation of functional and aesthetically pleasing timekeeping devices using additive manufacturing techniques.
The concluding section will summarize the key benefits and potential applications of this technology, highlighting its role in democratizing access to horology and design.
Conclusion
The preceding exploration of the 3D printable clock has illuminated several facets of its design, fabrication, and utility. The ability to produce timekeeping devices through additive manufacturing democratizes a traditionally specialized craft, granting access to a broader audience. Material selection, design considerations, and post-processing techniques significantly influence the functionality and accuracy of the final product.
While challenges remain in achieving the precision of commercially manufactured timepieces, the capacity for customization, rapid prototyping, and design iteration positions the 3D printable clock as a valuable tool for education, artistic expression, and technological exploration. Further development in materials science and printer technology will likely enhance the viability of this approach, potentially expanding its applications in niche markets and specialized environments. Continued research and development will be crucial to maximizing the potential of additive manufacturing in the realm of horology.
